YJ-T5A
2019-04-30 12:40:39 Click: 5424

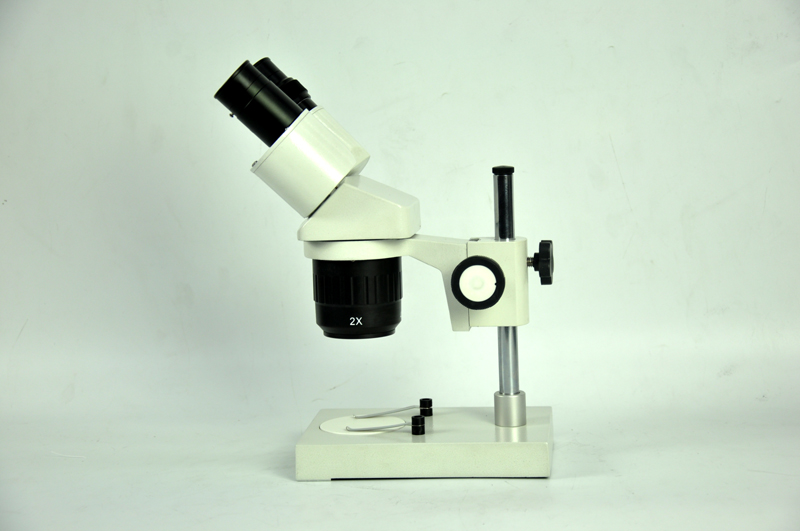

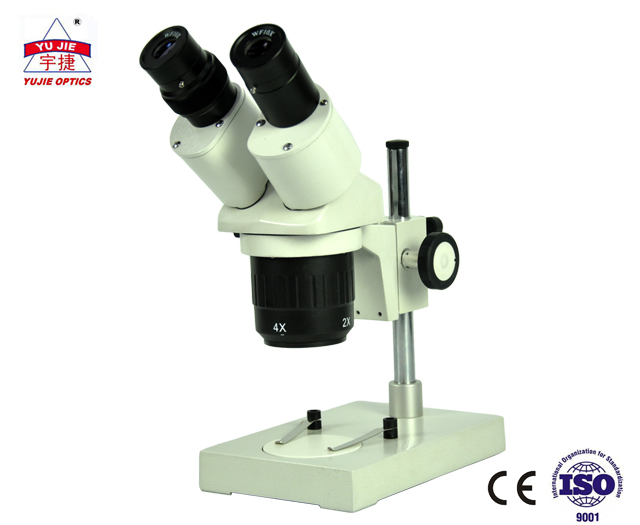

This series microscope is a basic stereo microcsope with fixed settings. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide field plane-scope eyepiece WF10X/18mm(1pair) |
| Objective | Grouped from any two objective of 1X,2X,3X,4X |
| Magnification | 10X-20X, 10X-30X,10X-40X,20X-40X, |
| Head | Articulated free binocular head, 45°inclined, 360°rotatable, interpupillary distance: 55-75mm, with a diopter adapter on the left eyepiece tube |
| Focusing Adjustment | Rack and pinion focusing with hand wheels for adjusting focusing torque, focusing range: 40mm |
| Arm Type | Pole, pole height: 205mm, the moving range of head holder:80mm |
| Illumination | Ф60mm black-whilte reversible stage plate |
| Optional | WF15X,WF20X |
| Net Weight | 2KG |
Package
4SETS/CARTON
CARTON DIMENSION: 67X40X41CM
GROSS WEIGHT: 10KG
