YJ-T3C
2019-04-30 12:29:37 Click: 6304

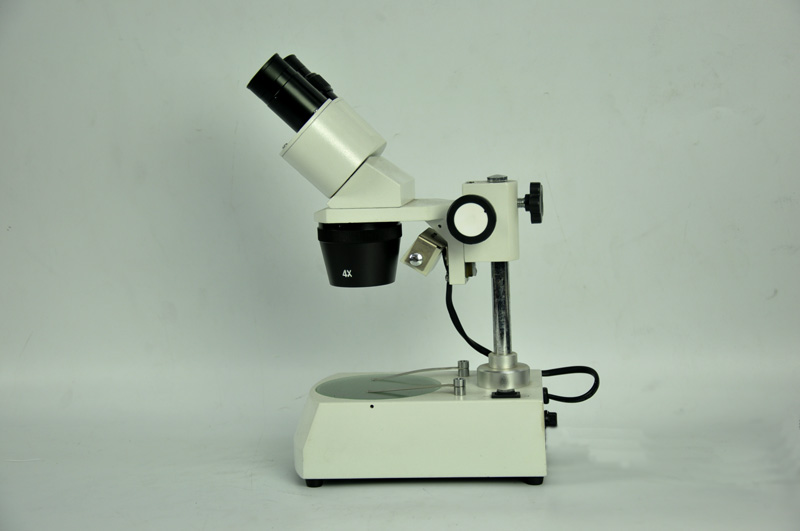

This series microscope is a basic two-steps fixed stereo microcsope. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
| Objective | Grouped From Any Two Objectives of 1X, 2X, 3X and 4X, Working Distance: 1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm |
| Head | Articulated Free Binocular Head, Interpupillary Distance: 55-75mm, 45°Inclined |
| Focusing Adjustment | Rack and Pinion Focusing with Mechanism for Adjusting Focusing Torque |
| Arm Type | Pole |
| Illumination | Top and Bottom light, Light Optional: 12V/10W halogen lamp, 1W LED |
| Optional | 1.WF15X, WF20X; 2. Rechargeable batteries |
| Net Weight | 2.4kg |
Package
1set/Foam + Inner Box
4sets/Carton
Gross Weight: 11kg
Carton Dimension: 61X35X36cm
