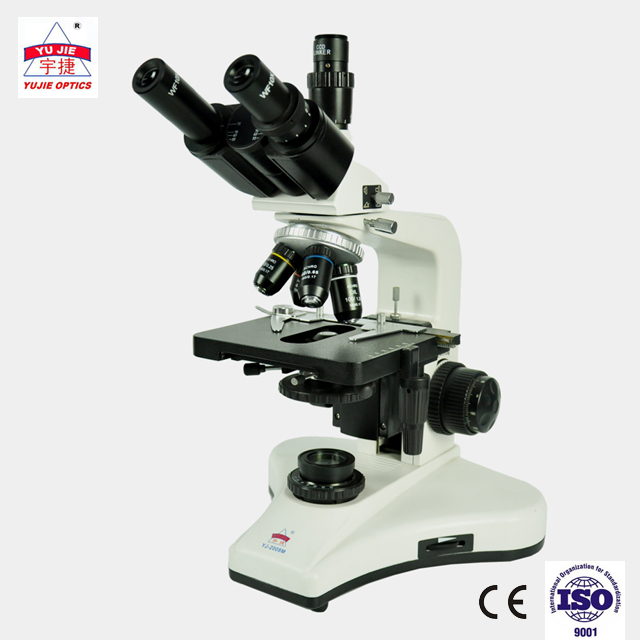

This series microscope is a bigger size model and high precision instrument designed and produced by our company.It is espcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |

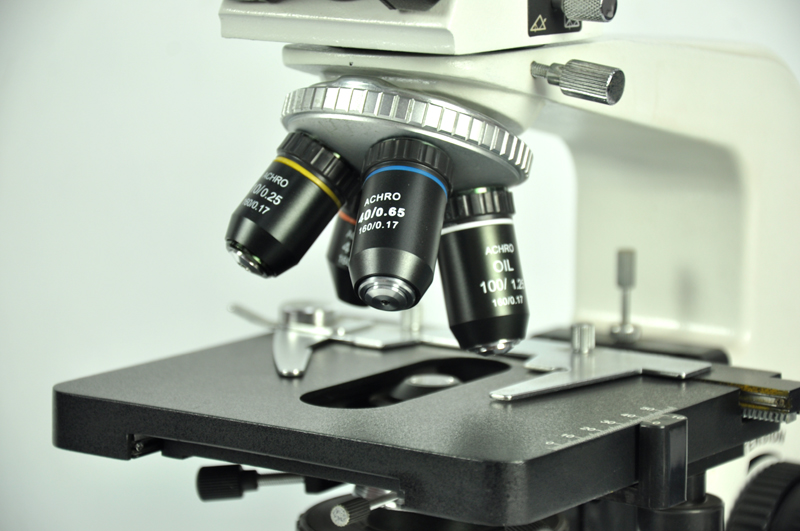

| Objective | 45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil) |
| Head | Articulated Free Trinocular Head, Interpupillary Distance:55-75mm; 30°Inclined, 360°Rotatable |

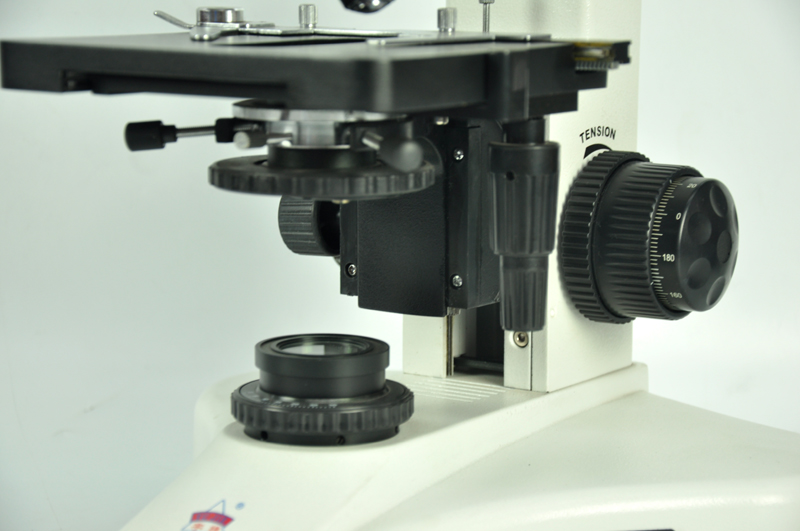

| Stage | Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm |
| Condenser | ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter |
| Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 30mm, Precision:0.002mm |
| Illumination | Optional: 6V/20W Halogen Lamp;Built-in Adjustable Brightness 1W LED lamp |
| Optional | 1.WF16X, WF20X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable Batteries |
| Net Weight | 7kg |
Package
1set/Foam + Carton
1set/Carton, gross weight: 9.5KG,
Carton Dimension: 42X31X52cm
